FROND

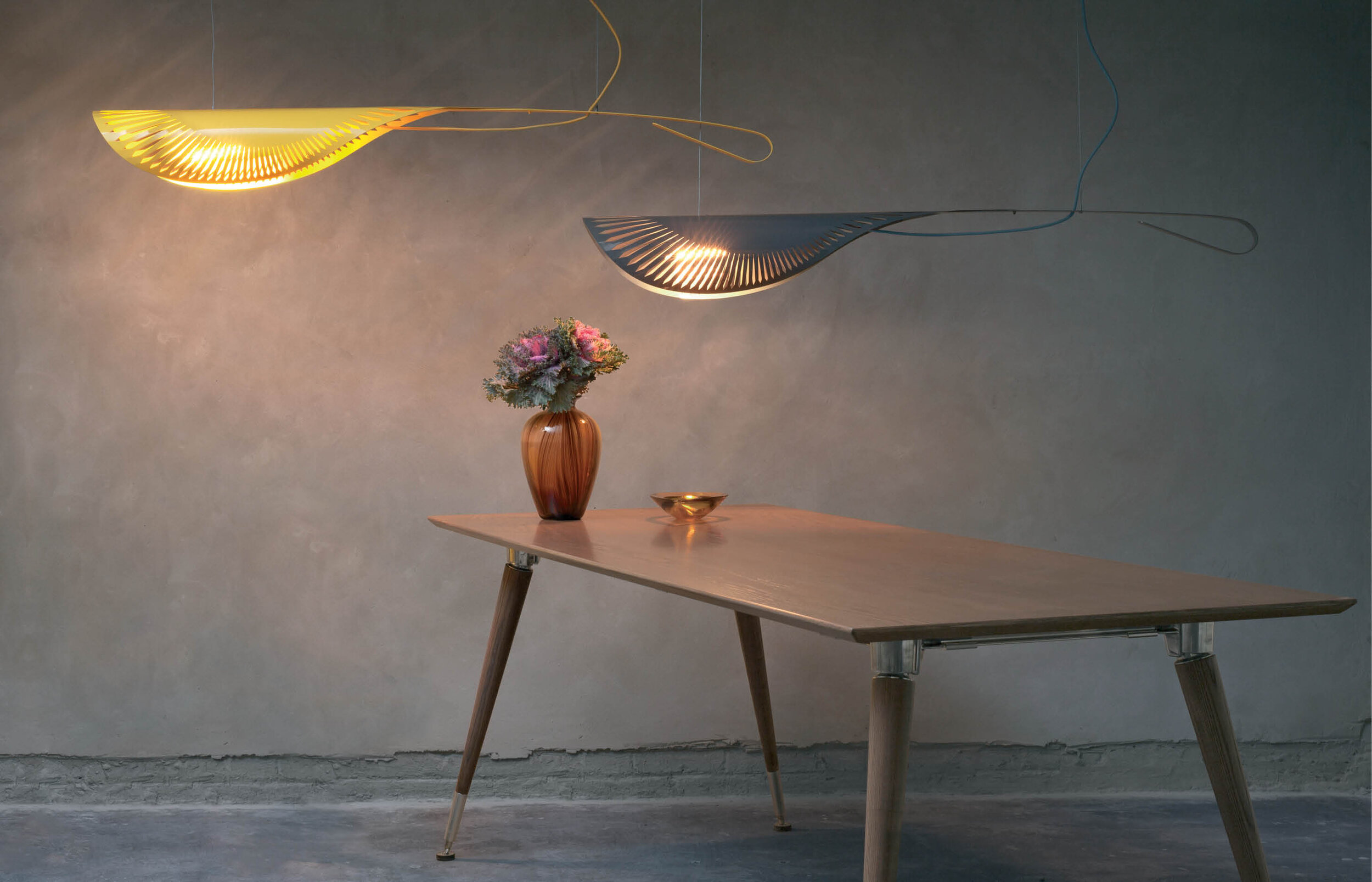

These swooping signature lamps are available in various powder-coating colours. They are suspended on thin tension wire at two points and can be suspended at different angles & heights. We recommend the long tubular incandescent bulb as it illuminates with a gentle ambient warmth.
All prices ex VAT / delivery

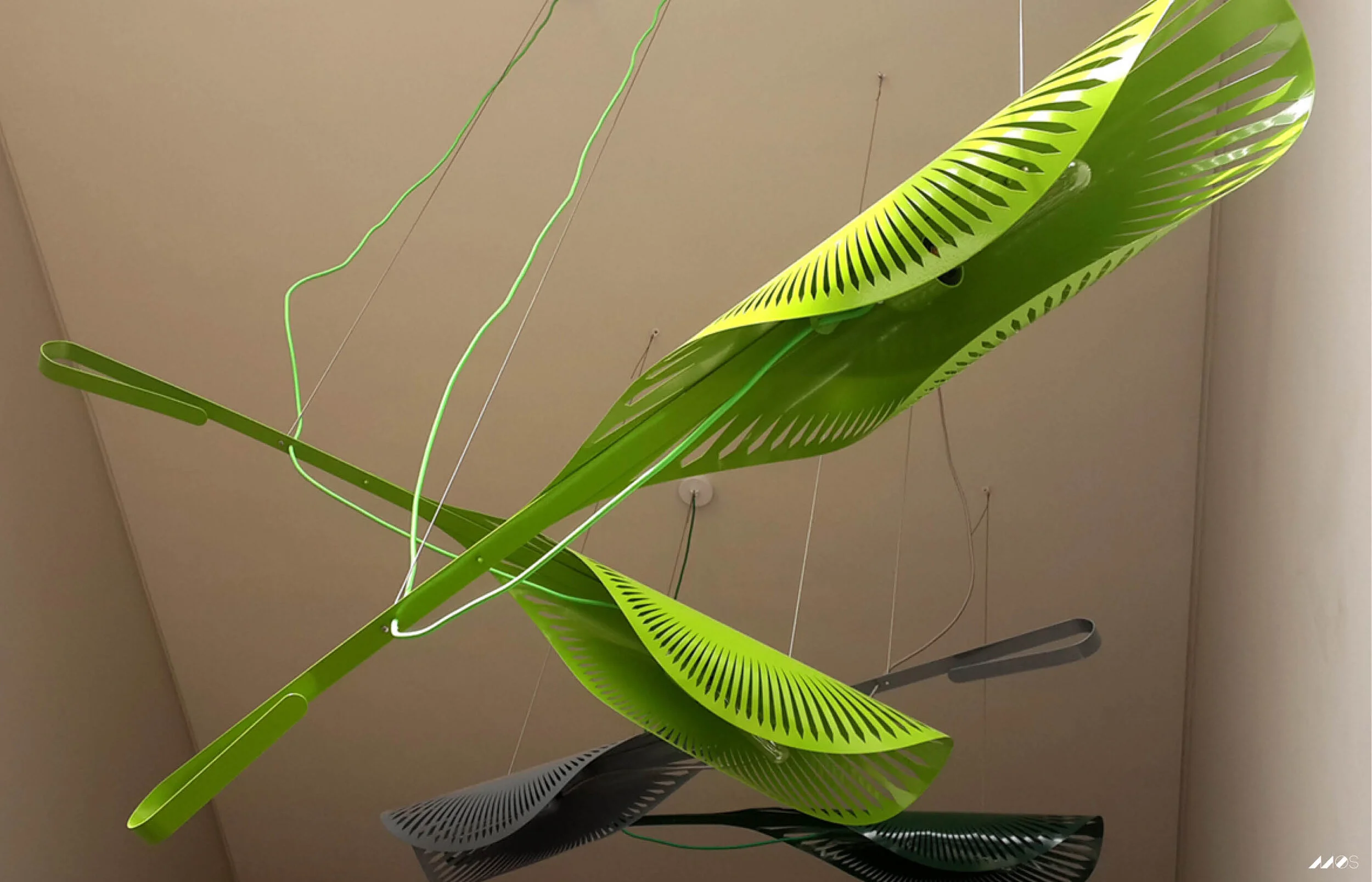

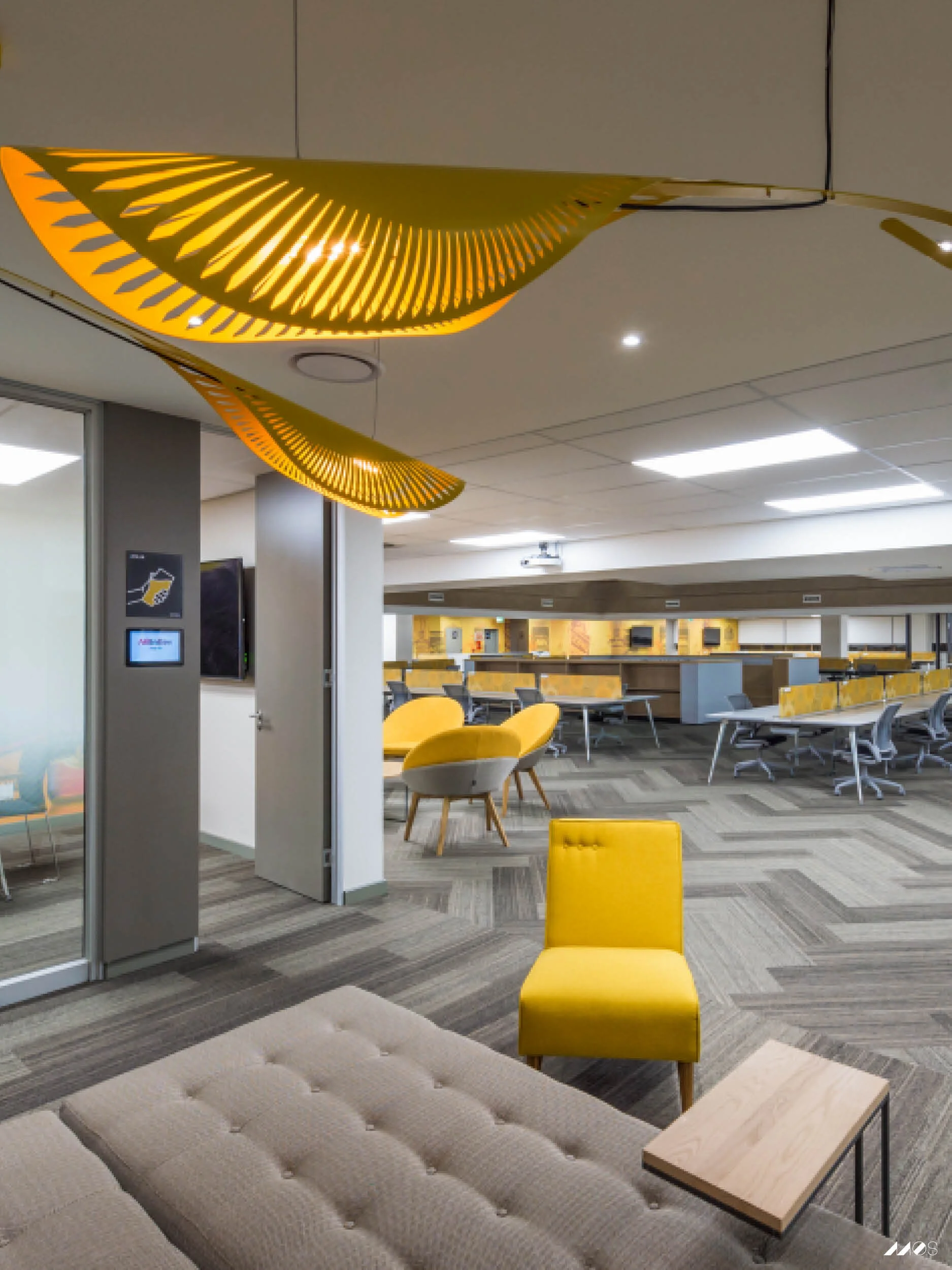

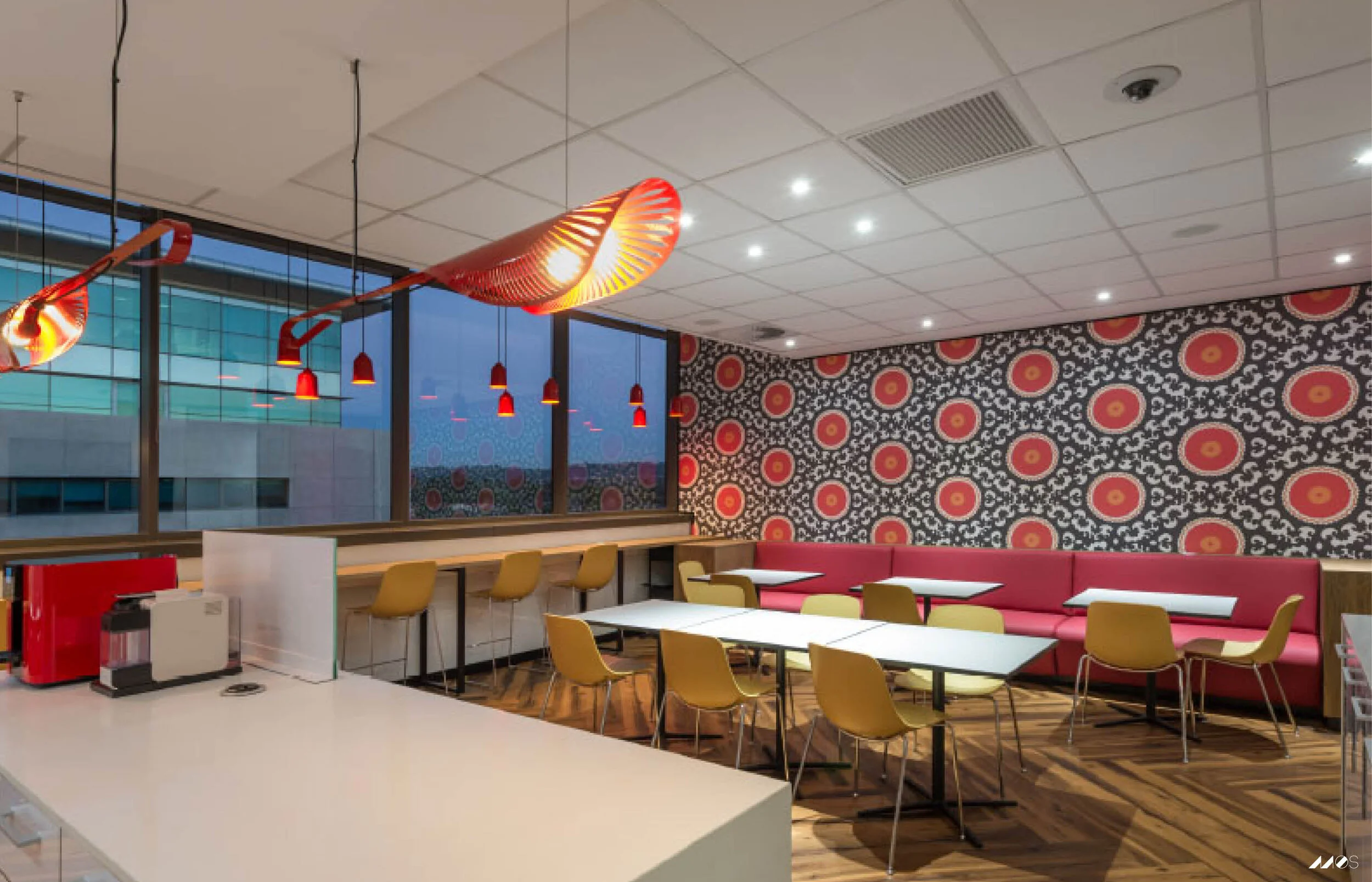

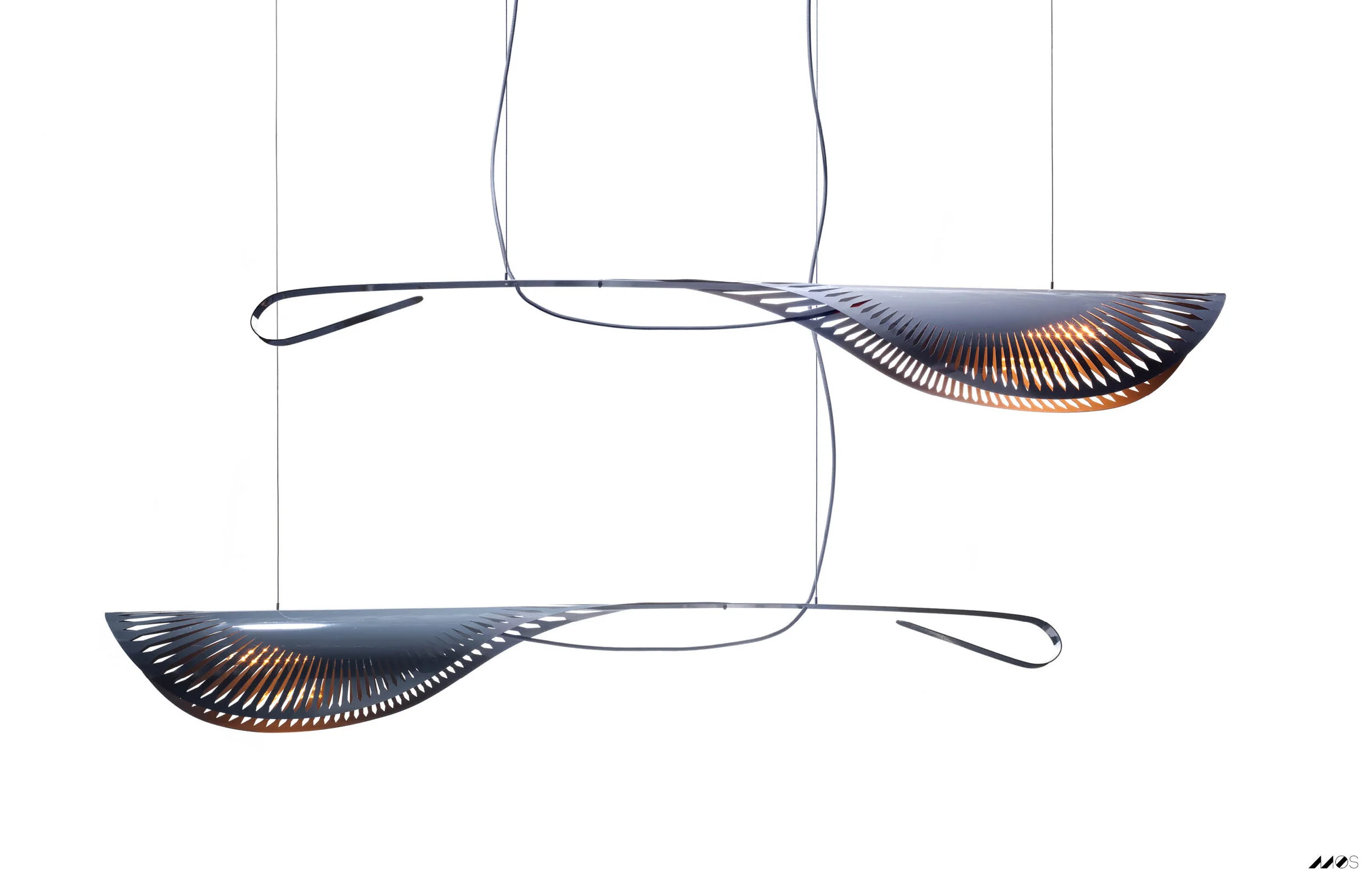

GALLERY
COLOUR FINISH OPTIONS
SUSPENSION OPTIONS

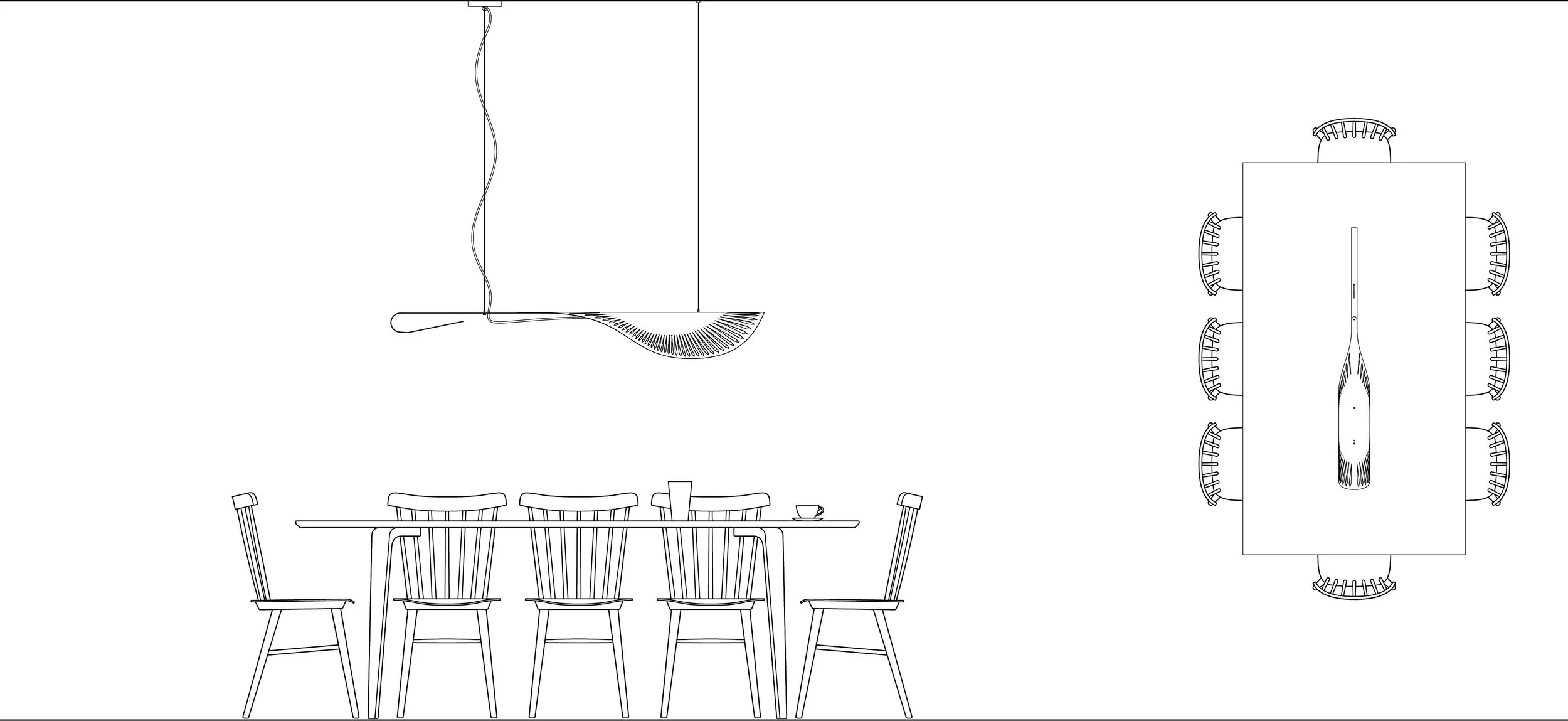

Pendant hanging horizontal from a single ceiling canopy (Table size: 1200 x 2100 x 750mm)

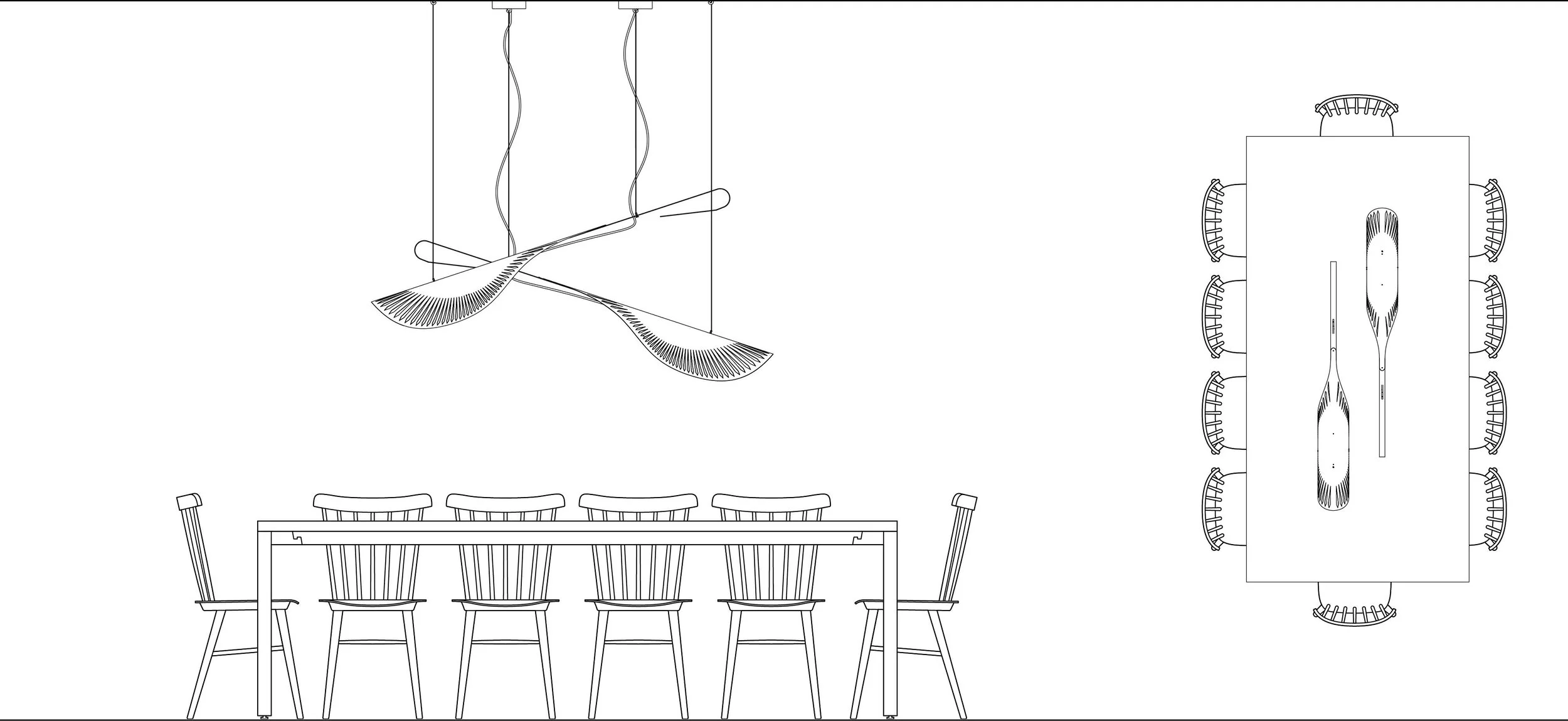

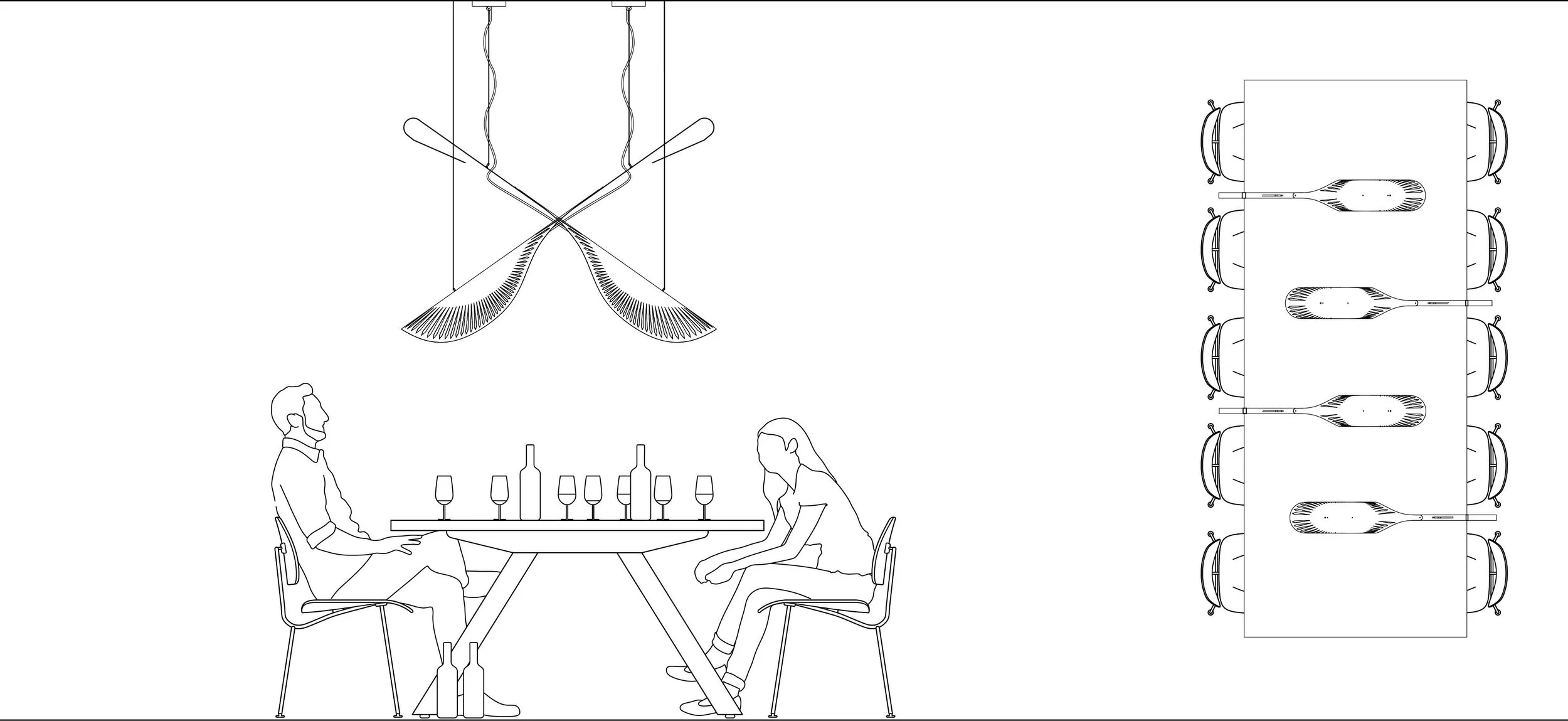

Pendants hanging at angles from individual ceiling canopies (Table size: 1200 x 2400 x 750mm)

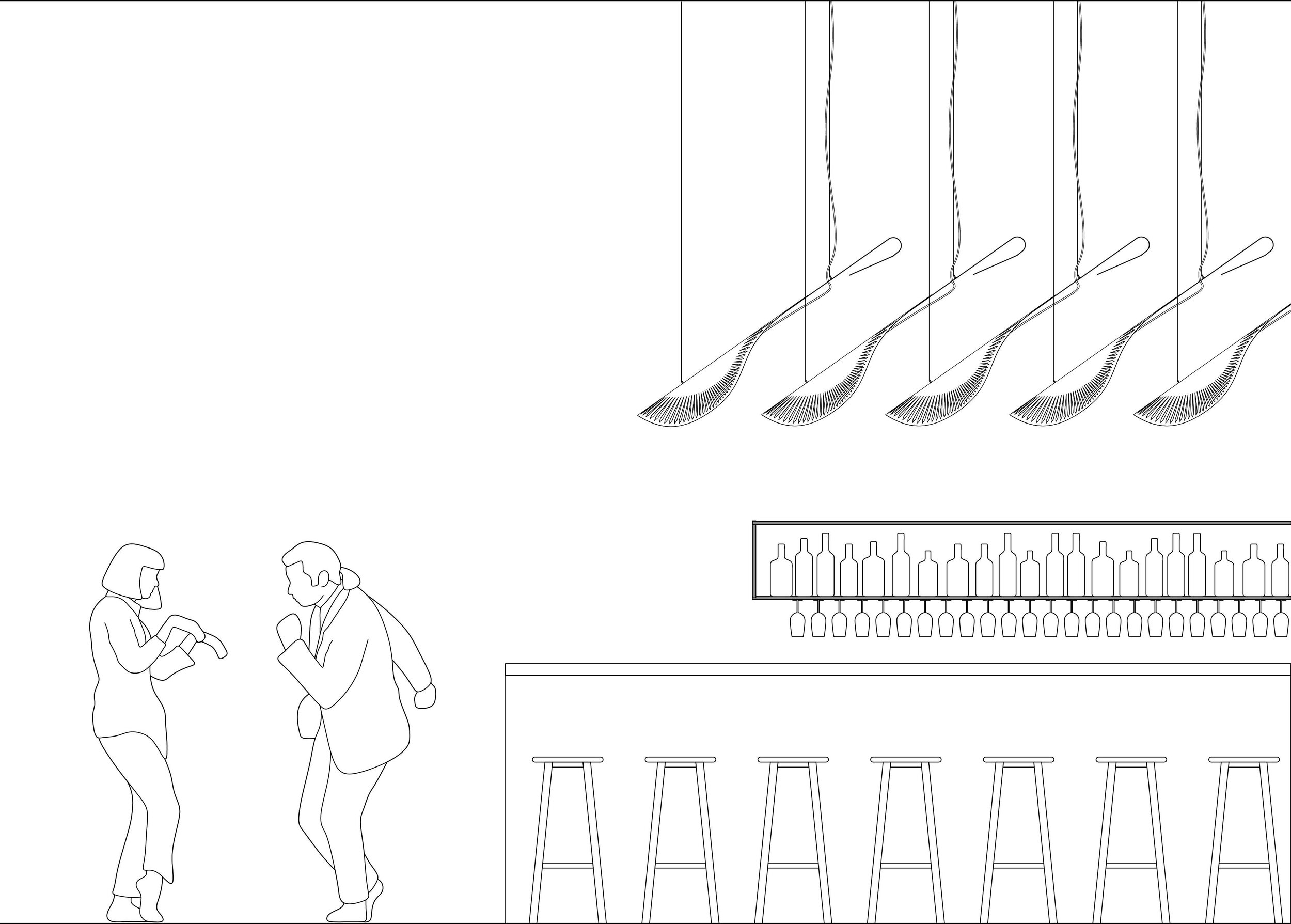

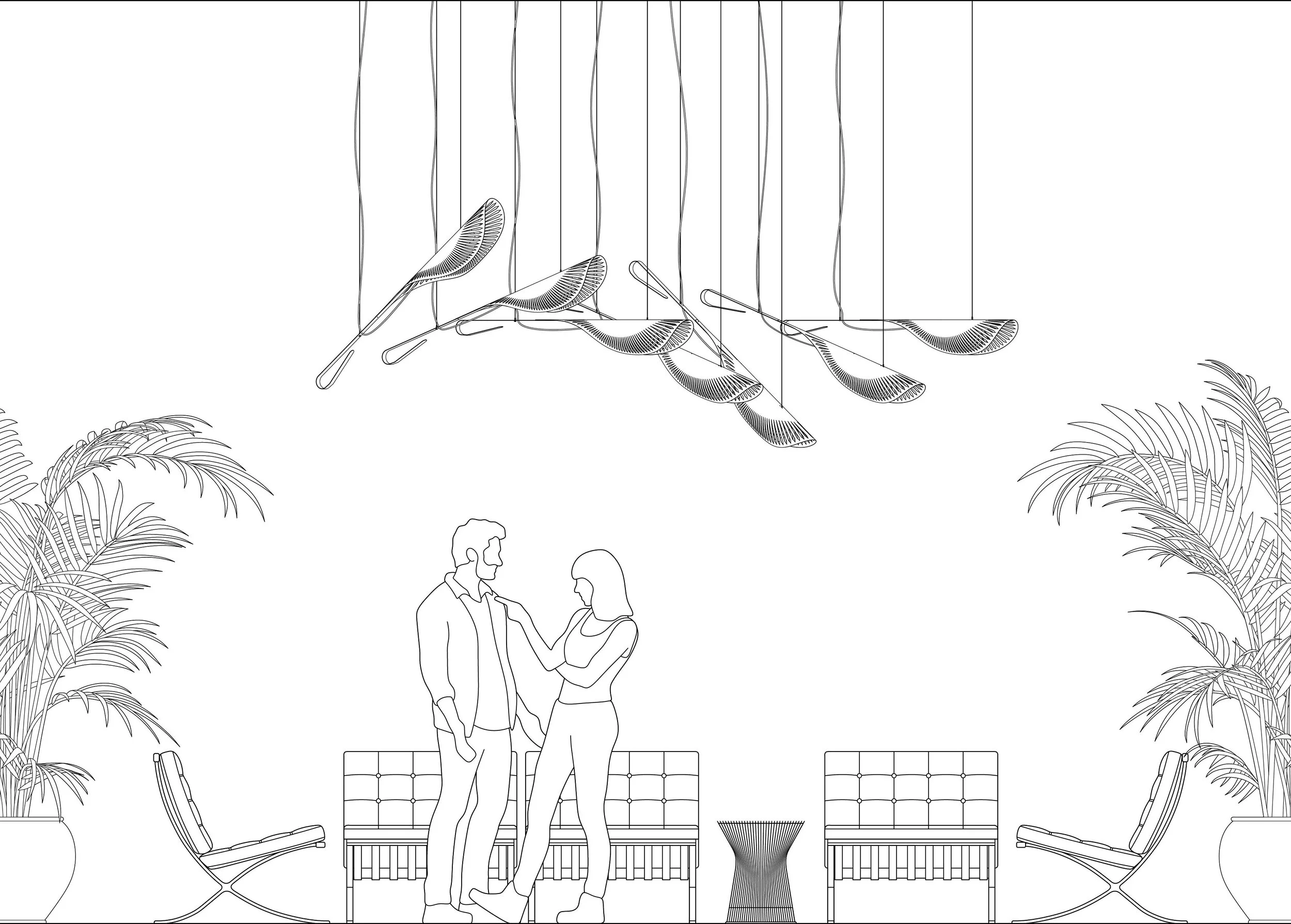

Pendants hanging at angles from individual ceiling canopies (Table size: 3000 x 1200 x 750mm)
Ceiling Height: 4100mm
Ceiling Height: 4100mm
FROND SIZING & SPECIFICATIONS

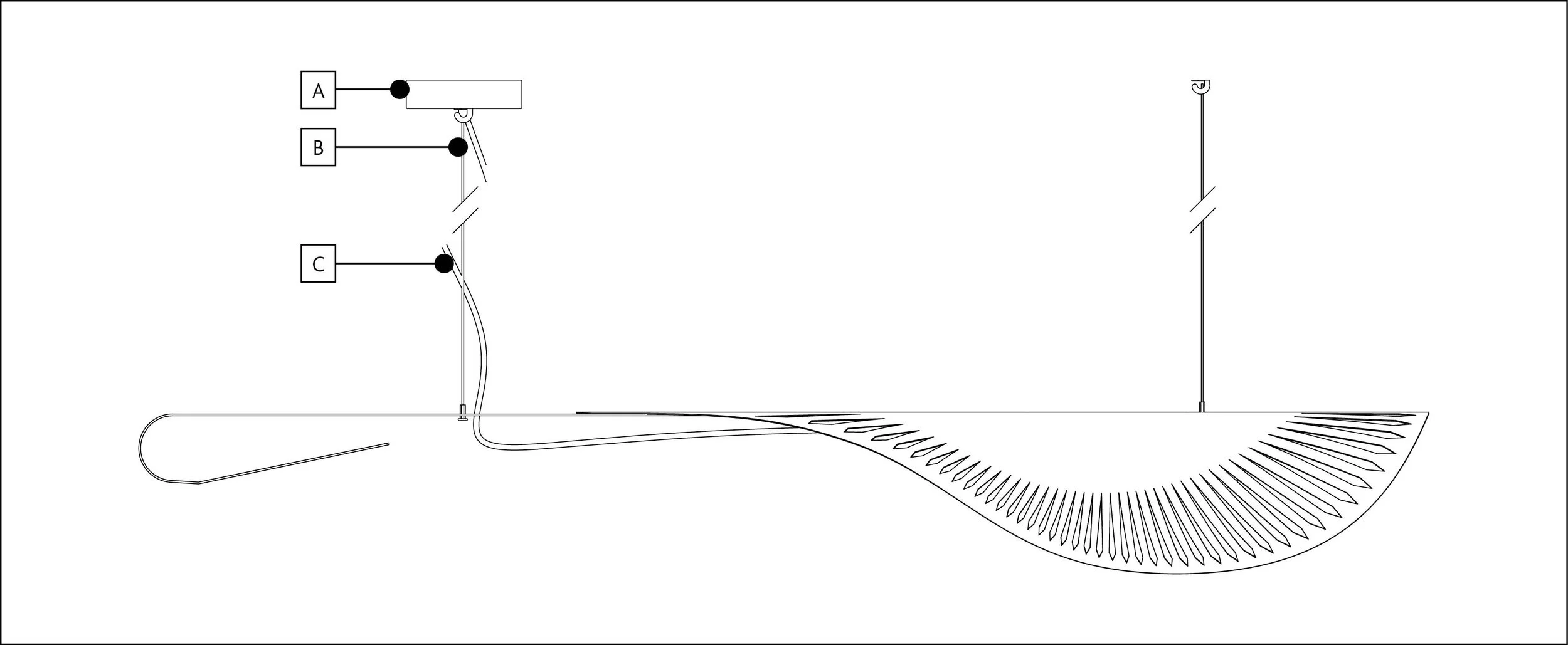

A Ceiling Canopy 127Ø x 27mm | B Tension Wire 1500mm | C electric cabling 1500mm
SPECIFICATIONS

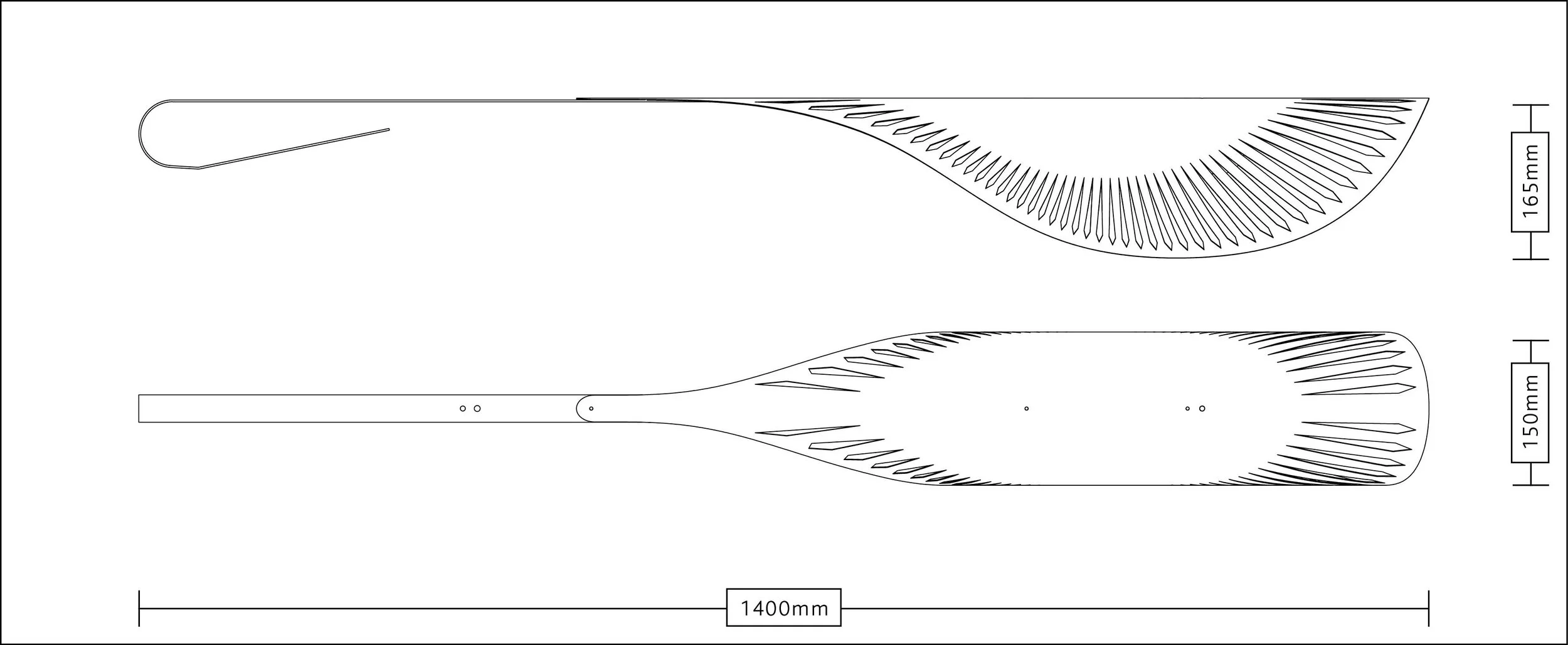

FROND SIZING: 150 x 1400 x 165mm H
FROND WEIGHT: 1.8kg
MATERIAL: mild steel
ELECTRIC CABLING: 1500mm supplied
TENSION WIRE: 2 lenghts of 2mm Swagged Head SS tension wire
HOOKS: No10 and No6 powder-coated hooks

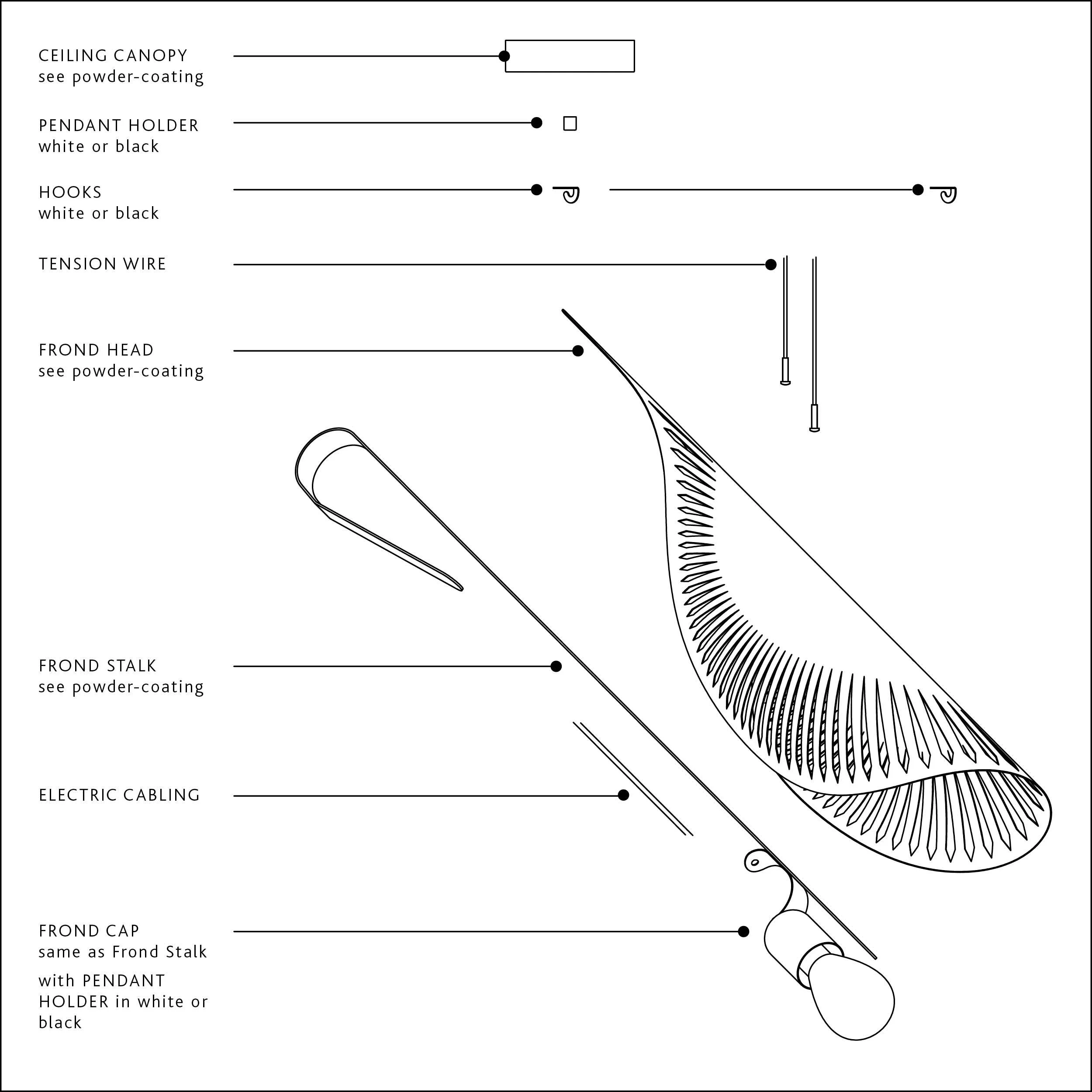

HOW TO CUSTOMISE THE FROND PENDANT
PART SPECIFICATIONS
ELECTRIC CABLING
2 core, 0.75mm2, 220-240V
double PVC insulation,
with or without colour braid
LAMP HZOLDER
TYPE: E27 / Plain casing
Casing: PET GF, T1210
Nominal rating: 4/250
Push in twin terminals: 0.5-2.5mm2
TENSION WIRE SPECIFICATIONS
2mm JAKOB TENSION WIRE ROPE with swaged radius head end stop
ASI 316 STAINLESS STEEL 6 x 7 + WC
RATED 2,4kN minimum breaking strength
SUPPLIED WITH 2mm aluminium ferrules
