SMILE

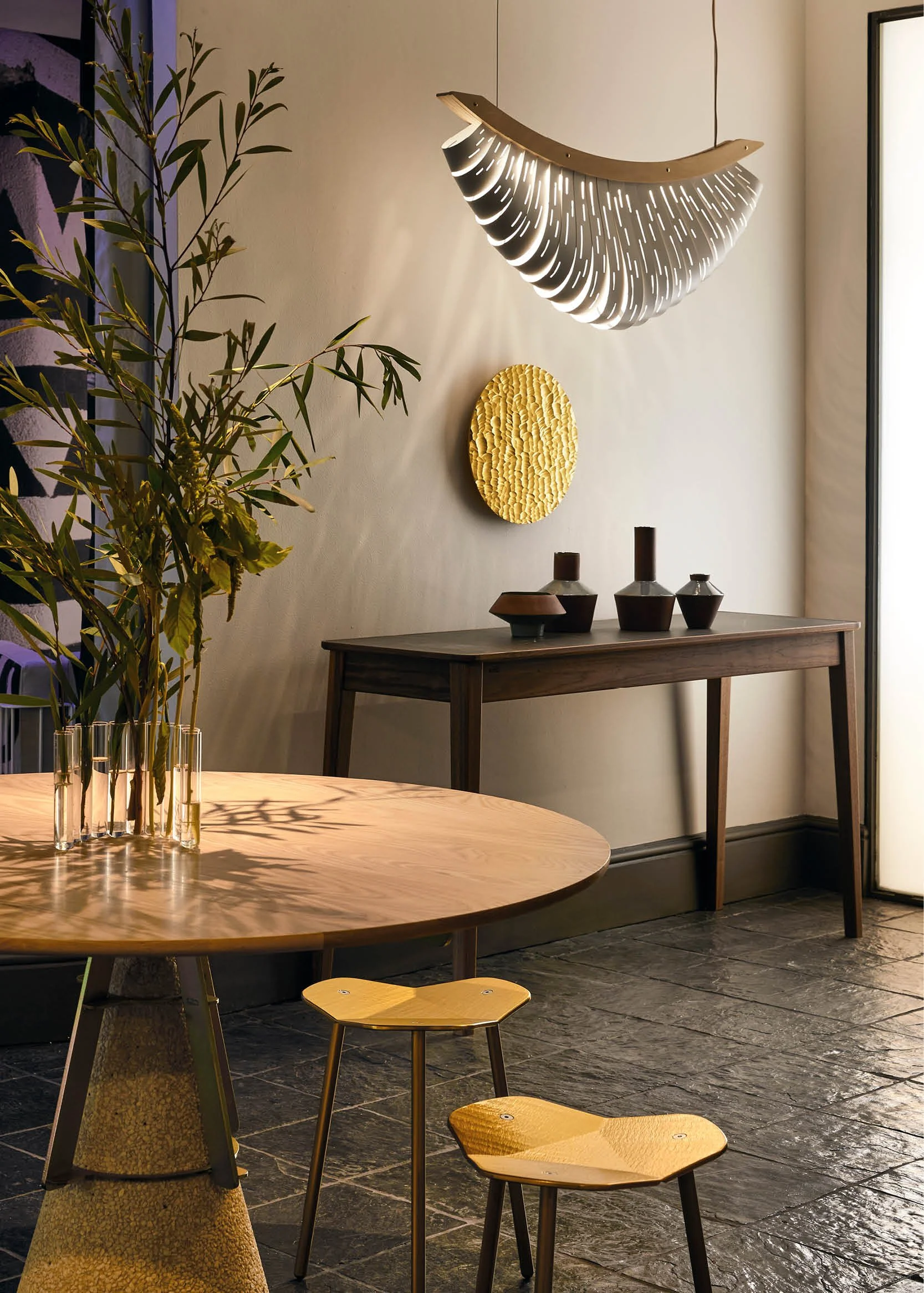

The cheshire cat SMILE statement lamp softly swoops and gently illuminates.
Made from Birch and Aluminum and available in various finish options.
All prices ex VAT / delivery
GALLERY
COLOUR FINISH OPTIONS
SUSPENSION OPTIONS

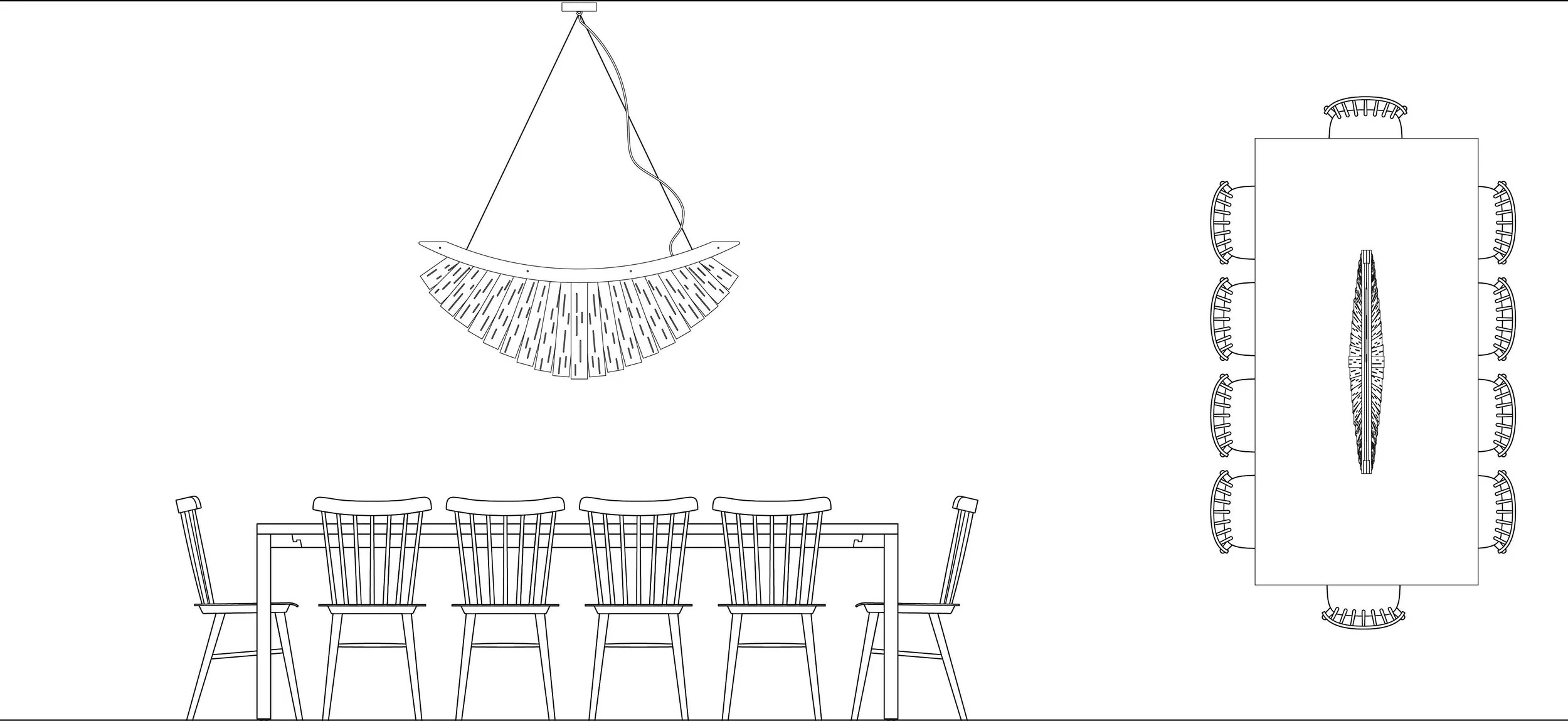

Pendant hanging from a single ceiling canopy (Table size: 1200 x 2400 x 750mm)

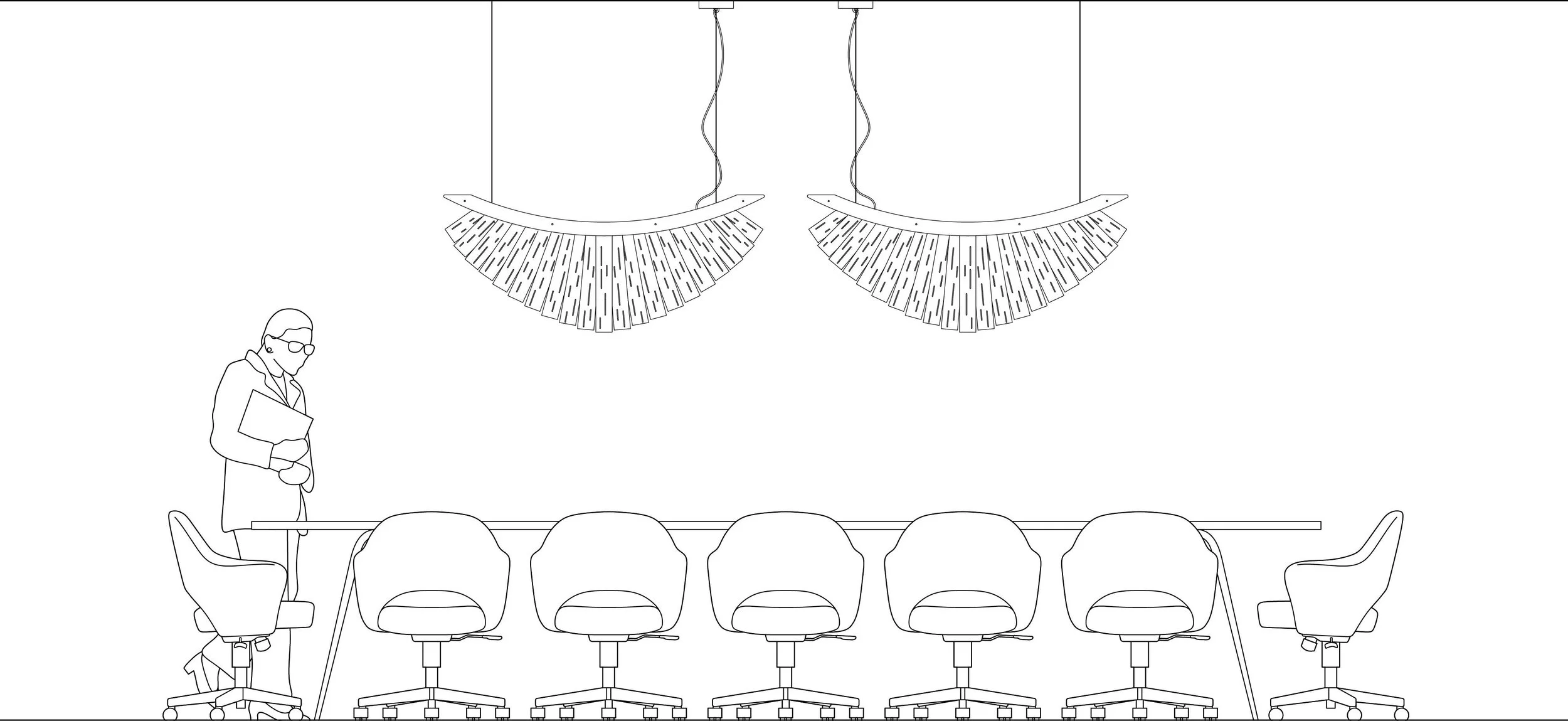

Pendants hanging from individual ceiling canopies (Table size: 1200 x 4000 x 750mm)
SIDE VIEW
Ceiling Height: 4100mm

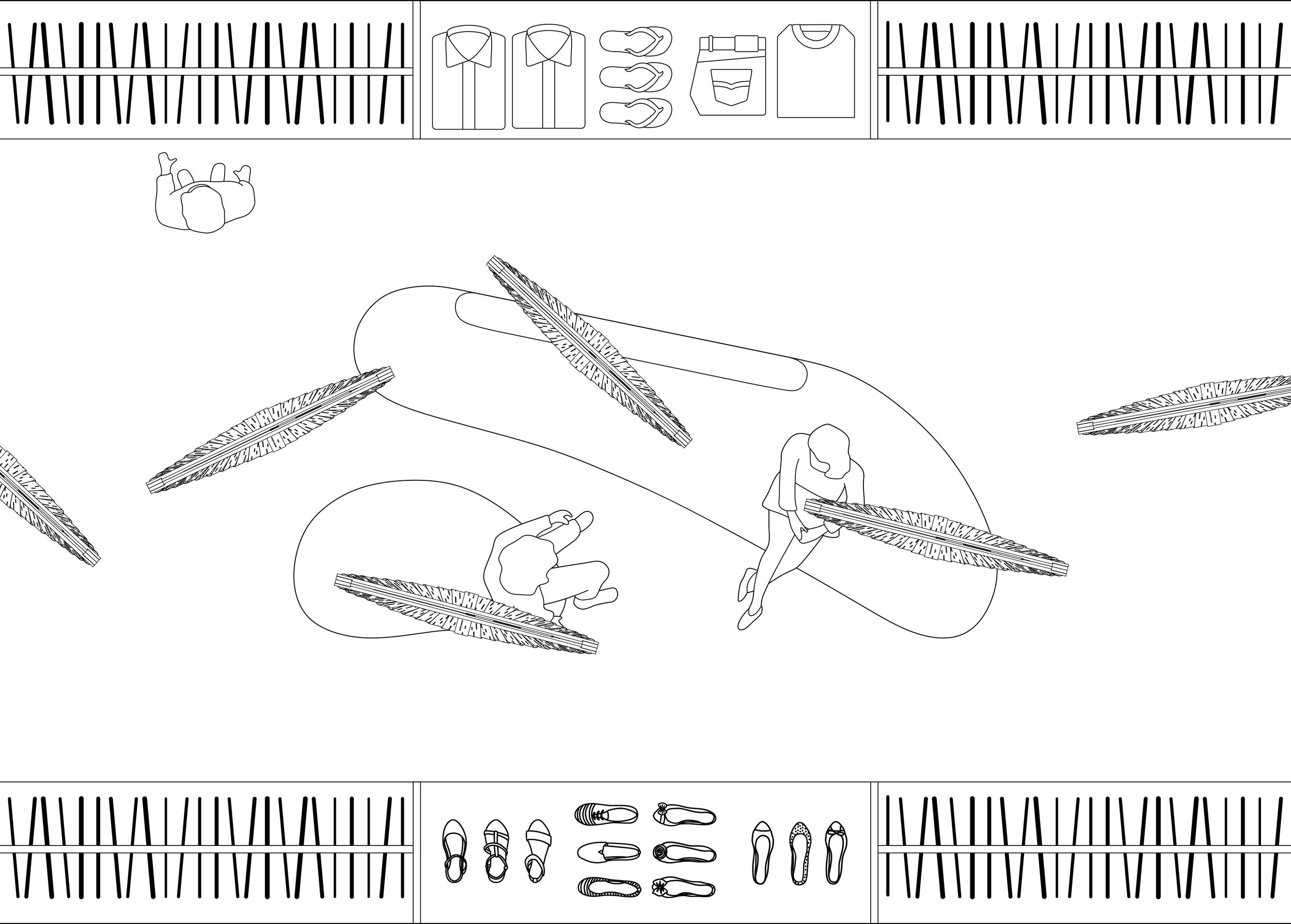

TOP VIEW

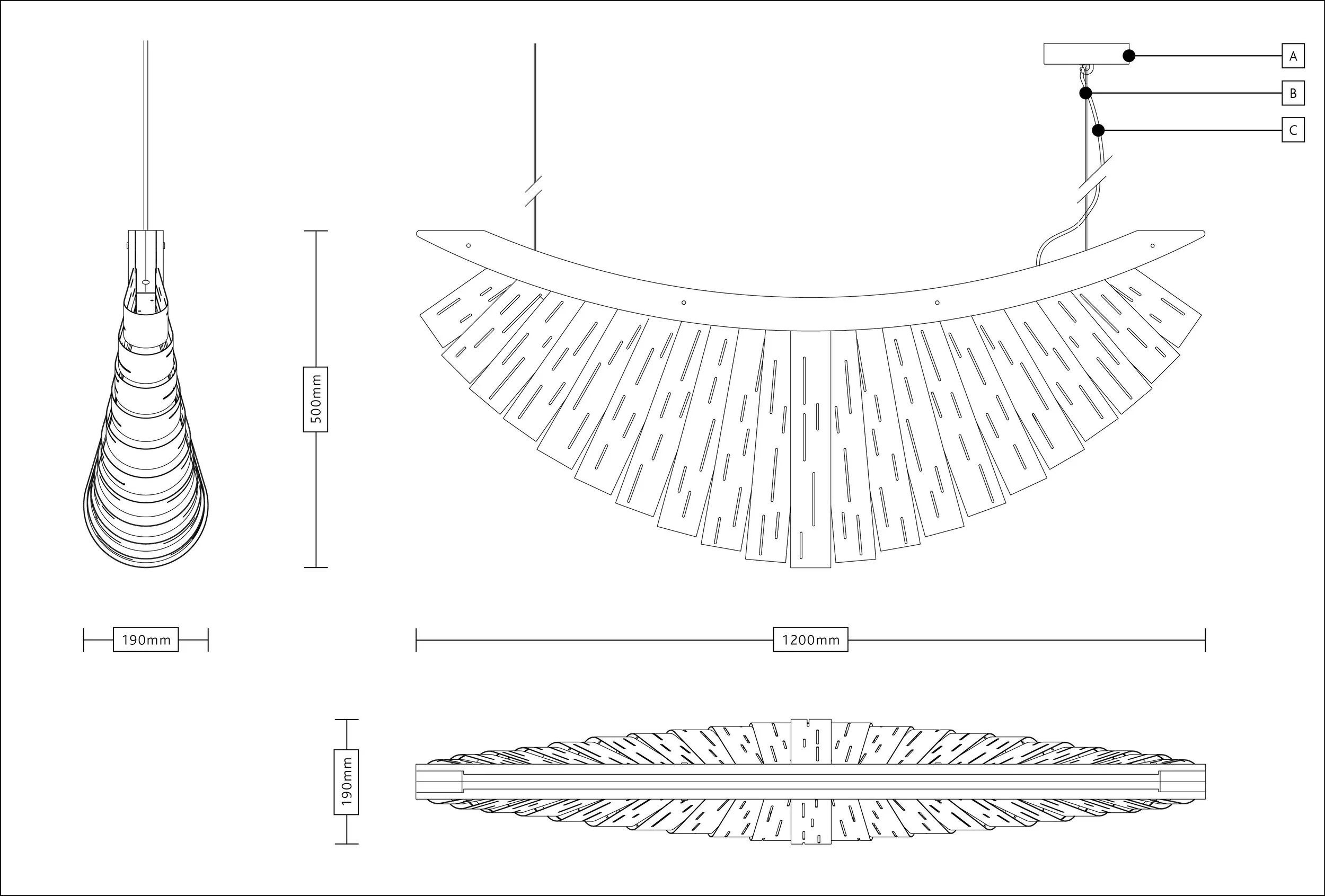

SMILE SIZING
A CEILING CANOPY 127Ø x 27mm | B TENSION WIRE 1500mm | C ELECTRIC CABLING 1500mm

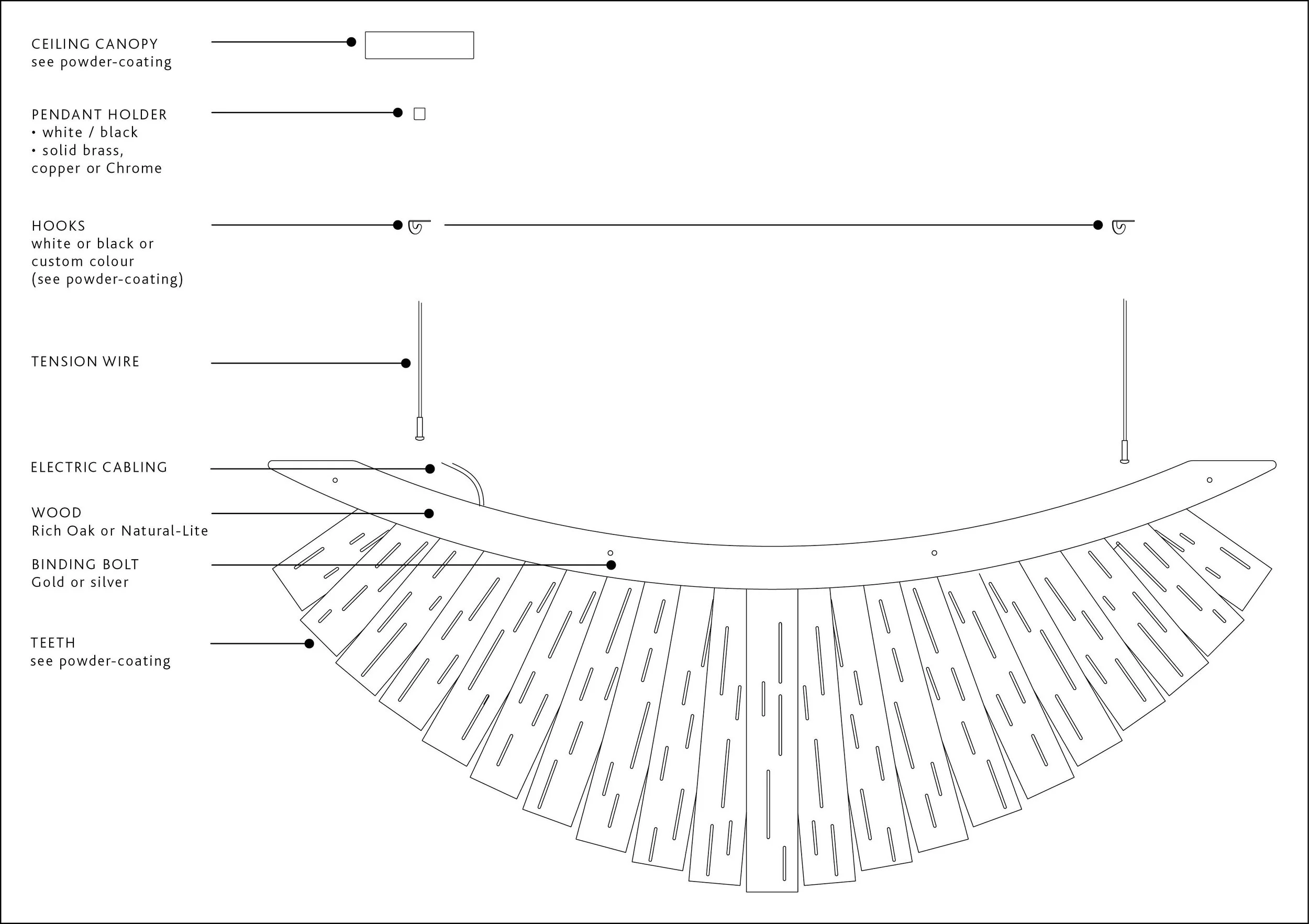

SMILE SPECIFICATIONS
LAMP SPECIFICATIONS
SMILE SIZING: 1200 x 200 x 500mm
MATERIAL: aluminium and plywood
FINISH: powder-coating
ILLUMINATION: LED strip, dimmable
ELECTRIC CABLING: 1500mm supplied
TENSION WIRE: 2 lenghts of 2mm Swagged Head SS tension wire
HOOKS: No10 and No6 powder-coated hooks
PART SPECIFICATIONS
ELECTRIC CABLING
2 or 3 core, 0.75mm2, 220-240V
double PVC insulation, with or without colour braid
TENSION WIRE
2mm JAKOB TENSION WIRE ROPE with swaged radius head end stop
ASI 316 STAINLESS STEEL 6 x 7 + WC
RATED 2,4kN minimum breaking strength
SUPPLIED WITH 2mm aluminium ferrules

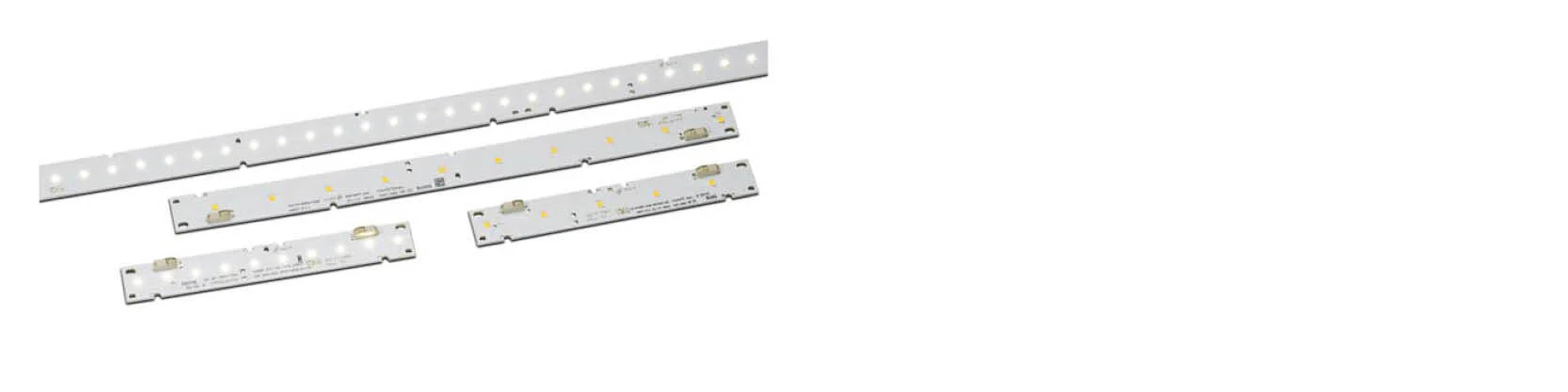

LED SPRIPS
BRAND: Vossloh-Schwabe
TYPE: LED Line SMD W2 Gen. 4
CODE: 568788 (560 mm) / 568812 (140mm)
BEAM ANGLE: 120°
OPERATION TEMPERATURE RANGE AT TC POINT: °C min. -20 | °C max. +80
STORAGE TEMPERATURE RANGE: °C min. -20 | °C max. +85
MAX. ALLOWED REPETITIVE PEAK CURRENT: mA 1200

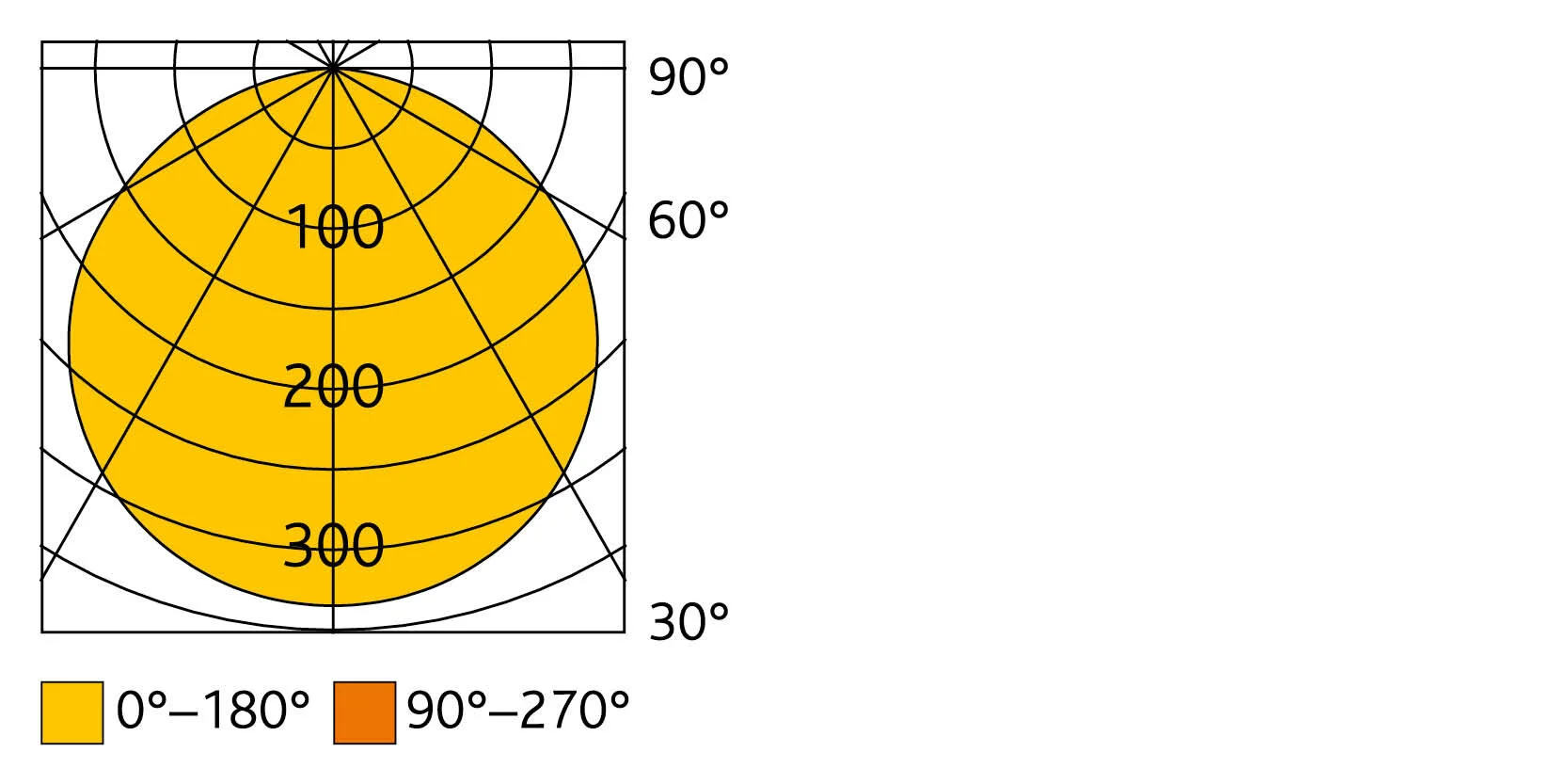

OPTICAL CHARACTERISTICS
REF NO: 568812 LED Line SMD Gen. 4 – L14 W2
TYPE: WU-M-580-S2-TC/BC-830
COLOUR: warm white
CORRELATED COLOUR TEMPERATURE: 3000k (colour tolerance: 3 MacAdams)
TYP. LUMINOUS FLUX AND TYP. EFFICIENCY: Production tolerance of luminous flux and efficiency: ±10%
150 mA 150 lm | 185 lm/W
250 mA 245 lm | 178 lm/W
350 mA 340 lm | 173 lm/W
500 mA 475 lm | 164 lm/W
700 mA 645 lm | 151 lm/W
REF NO: 568788 LED Line SMD Gen. 4 – L56 W2
TYPE: WU-M-577-S2-TC/BC-830
COLOUR: warm white
CORRELATED COLOUR TEMPERATURE:
3000k (colour tolerance: 3 MacAdams)
TYP. LUMINOUS FLUX AND TYP. EFFICIENCY: Production tolerance of luminous flux and efficiency: ±10%
150 mA 600 lm | 185 lm/W
250 mA 980 lm | 178 lm/W
350 mA 1360 lm | 173 lm/W
500 mA 1900 lm | 164 lm/W
700 mA 2580 lm | 151 lm/W
APPLIED STANDARDS
EN 62031
LED modules for general lighting - Safety specifications
except WU-M-615
EN 62471 Photobiolgical safety of lamps and lamp systems
VOSSLOH-SCHWABE PRODUCT GUARENTEE: 5 years
The conditions of the product Guarentee of the Vossloh-Schwabe group shall apply as published on their homepage www.vossloh-schwabe.com
LED DRIVER
BRAND Vossloh-Schwabe
TYPE Comfortline LED driver
CODE 186565 / 186564
COMFORTLINE LED DRIVERS – DIMMABLE WITH SELECTABLE CURRENT
350 – 700 mA,
max. 42 W and max. 84 W
The linear LED constant-current drivers are designed for use in office and retail lighting.
ELECTRICAL CHARACTERISTICS
Secondary side switching of LED modules is not allowed.
Power factor at full load: 0.95
Standby losses: < 0.4 W
DIMMING
Dimming function is realised by hybrid dimming.
Analogue dimming: 275 mA
PWM dimming: < 275 mA
Dimming range: 3 to 100%
If no dimming interface is connected, brightness will stay at 100%.
ADJUSTABLE
The output current can be freely adjusted in 25 mA steps between 350 mA and 700 mA by using a resistor (according to LEDset standard).
CONNECTIONDETAILS
Mains voltage: 220–240 V ±10%
Mains frequency: 50–60 Hz
DC operation: 198–264 V DC, 0 Hz (can be reduced to 176 V with reduced service life time)
Push-in terminals: 0.2–1.5 mm²
SAFETY FEATURES
Electronic short-circuit protection
Overload and overtemperature protection
Protection against “no load” operation
Degree of protection: IP20
Protection class I
Product guarantee: 5 years

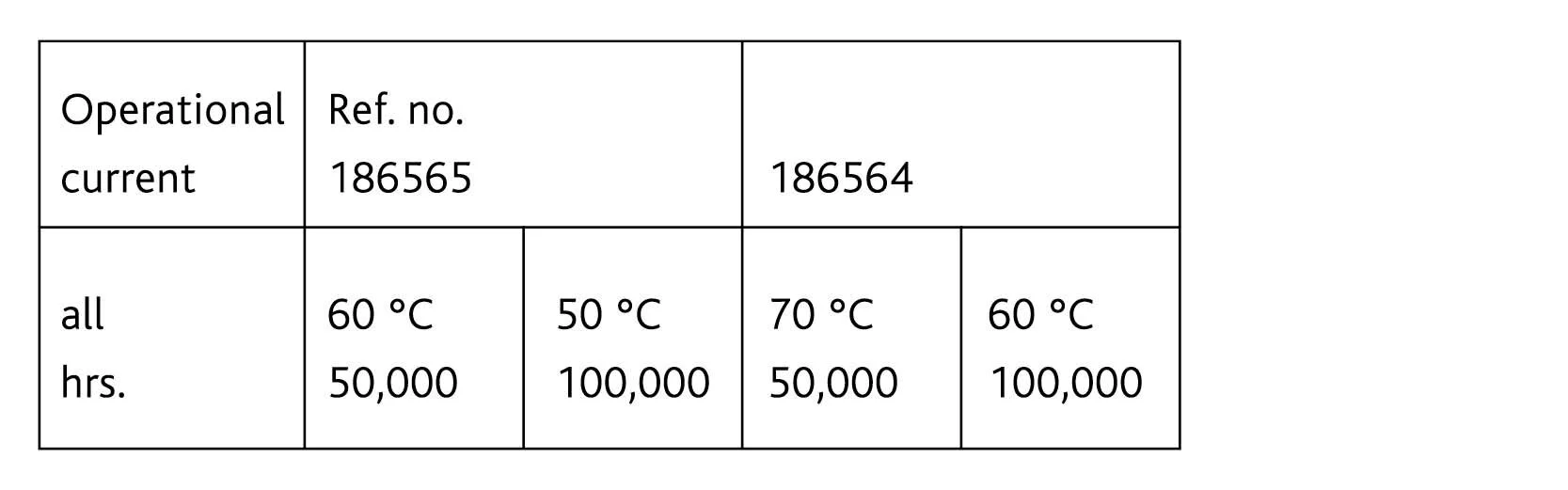

EXPECTED SERVICE LIFETIME
at operation temperatures at tc point
